Accessories

TCU 1000 Temperature Control for Laser Soldering

This non-contact radiation thermometer (minimum φ0.25mm) measures the temperature of the soldering point in real time.

Zero Solder Ball Feeder

Solder balls during the soldering process are a primary cause of rework and inspection complications, especially in fine-pitch applications. Our ZSB feeder system eliminates those issues by combating solder ball formation from the start.

Fume Extractors

Solder fumes are detrimental to human health and that of some equipment. That’s why we recommend using fume extractors and offer several solutions for differing production and factory environments and ventilation systems.

LFD Solder Feeder

This wire feeder can control feeding amount precisely via its pulse motor. It can also be upgraded with the ZSB roller blade as an optional attachment to prevent solder balls and flux spattering.

SSA Automatic Solder Feeder

The SSA system is designed for use in automated environments such as filling solder pots automatically, feeding solder for copper joints, flame applications etc. If used to control the solder liquid surface level, it automatically keeps the level constant.

SSB Solder Feeder Soldering Station

This non-contact radiation thermometer (minimum φ0.25mm) measures the temperature of the soldering point in real time.

CCH-700 Cleaning Heater

Designed for use with sleeve-soldering heads or robots, this cleaner heats the ceramic sleeve to burn out the dross inside.

DRC-1300 Drill Cleaner

This wire feeder can control feeding amount precisely via its pulse motor. It can also be upgraded with the ZSB roller blade as an optional attachment to prevent solder balls and flux spattering.

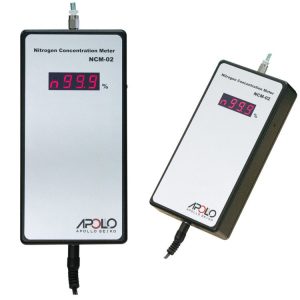

NCM-02 NITROGEN MEASURING INSTRUMENT

These meter can measure nitrogen concentration up to: 99.9%, O2 concentration: 25%. The level of N2 gas generation is measured precisely.

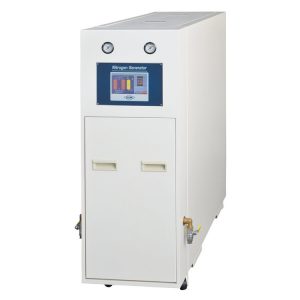

Nitrogen Gas Generators

By creating a bubble around the soldering surface, nitrogen gas eliminates oxidation of the soldering tip and soldering surface, thus minimizing solder defects and increasing tip life.

SC+A Position Calibration Camera

This position calibration camera has been designed exclusively for use with our soldering robots

CSS-2100 Micro Monitoring Camera

By connecting to CSS-2100 of CMOS camera, this recorder allows real-time recording of the soldering process without a PC. The stored data on the SD card makes it easy to transfer to a PC.

TTM 140 tip thermometer

The well-designed sensor allows for easy placement and accurate readings for iron tips. It achieves stable measurement of temperature within seconds.

CVR-2100 Video Recorder

By connecting to CSS-2100 of CMOS camera, this recorder allows real-time recording of the soldering process without a PC. The stored data on the SD card makes it easy to transfer to a PC.

YPH-10 Pre-Heater

Pre-heaters heat the solder wire and internal flux to help prevent solder balls and spattering, reduce tact/cycle time, and improve quality in both lead-free and tin/lead applications, especially when using large-diameter wire.

CRB Air-Blow Tip Cleaners

These units utilize air to clean iron tips. 2 models are available.

Automatic Tip-Position Correction Unit

This optical sensor prevents misalignment despite anomalies such as a worn iron tip.

Rotary Iron Tip Cleaners

We offer 3 models of rotary cleaners designed to work with our robots to keep their iron soldering tips clean and operating at optimal efficiency.
