Fume Extractors
Solder fumes irritate eyes, nose and throat of workers and can cause equipment failures if they accumulate on machinery. For these reasons, we recommend a fume extractor and offer several solutions for various production environments.

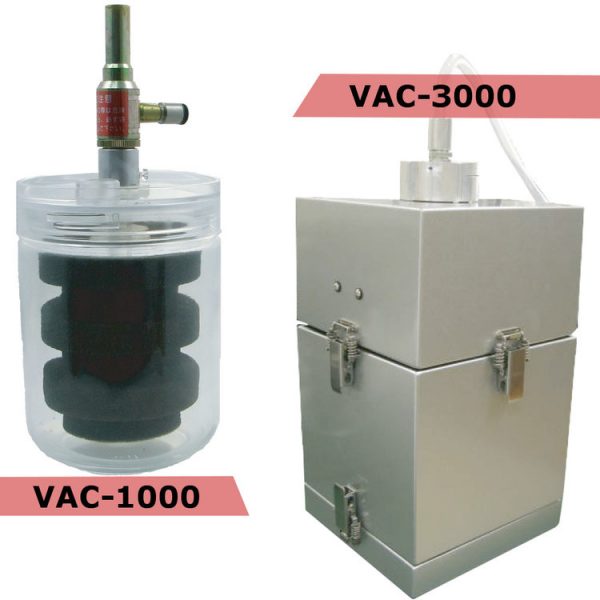

VAC-1000 and VAC-3000
The VAC-1000’s three-carbon-filter enclosure cleans solder fumes and exhaust. For environments with insufficient ventilation, we recommend combining it with the VAC-3000 unit.
| TYPE | VAC-3000 |
|---|---|
| Filtering Rate | More than 95%, 0.3μm |
| Vacuum Type | Ejector |
| Air Supply | 0.5MPa (Dry air) |
| Noise Level | Below 82 dB |
| Size (WxDxH) | 194x170x308 mm |
| Weight | Approx. 4.0kg |

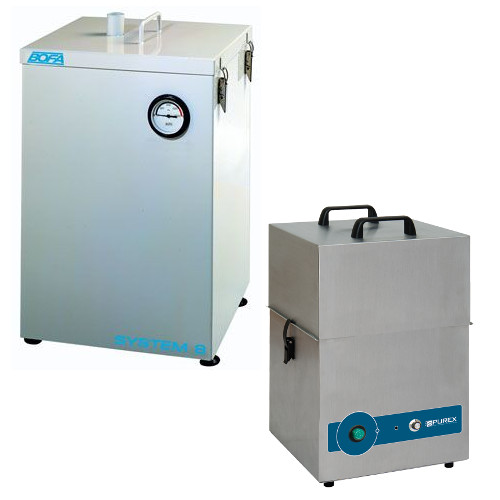

BOFA System15 and Purex
The VAC-1000’s three-carbon-filter enclosure cleans solder fumes and exhaust. For environments with insufficient ventilation, we recommend combining it with the VAC-3000 unit.
| TYPE | SYSTEM15 | PUREX |
|---|---|---|
| Filtering Rate | More than 99.997% (0.3μm, HEPA) | More than 99.997% |
| Vacuum Type | IP54 Synchronous (brushless) motor | – |
| Air Flow | 70m³/h | 100m³/h, 59cf/m |
| Noise Level | Below 50 dB | 52 dBA |
| Wattage | – | 50W / 75W |
| Size (WxDxH) | 360x330x500 mm | 455x480x720 mm |
| Power | AC230V 1ph 50Hz or 110V 1ph 60Hz | AC 120V or 230V, +/- 10% |
