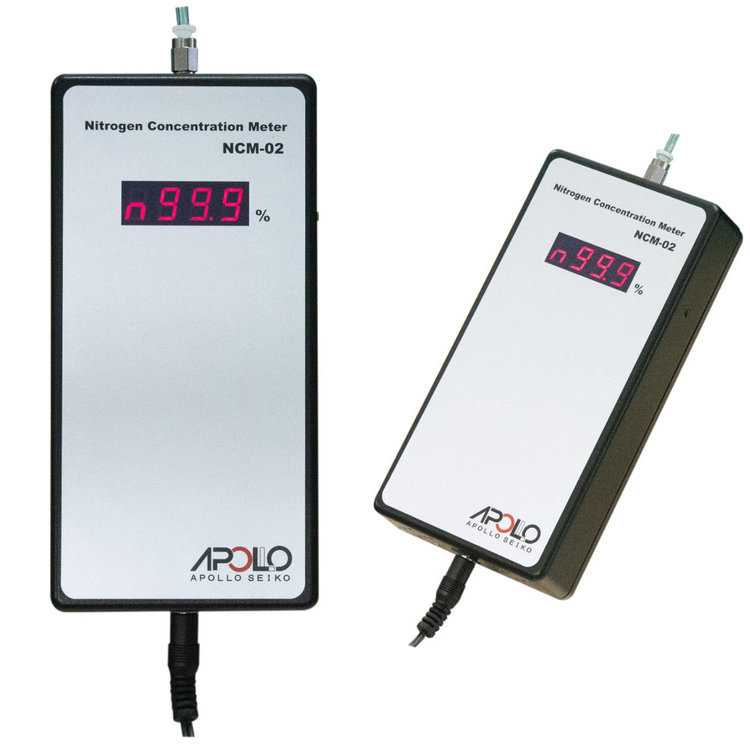

NCM-02 NITROGEN MEASURING INSTRUMENT
Ensure your solder environment is reaching optimal nitrogen levels. This meter is capable of measuring nitrogen concentration up to: 99.9% and O2 concentration of 25%. Sub-optimal levels of N2 are a common sign that internal filters in the system aren’t clean. This tool is great for detecting such issues.
| TYPE | NCM-02 |
|---|---|
| DISPLAY VALUE | 100 – 02 CONCENTRATION (%) |
| MEASURING RANGE | 99.9~75%(N2) 0.1~25%(O2) |
| OVERALL ACCURACY | ±1.0%FS (CONFORMS TO O2) |
| POWER SUPPLY | AC100~220V (ADAPTER INCLUDED) |
| POWER CONSUMPTION | LESS THAN 15W |
| WEIGHT | 0.5KG |
| N2 ENCLOSING PORT | FOR Φ4MM TUBE / ONE-TOUCH CONNECTOR |
