Nitrogen Gas Generators
By creating a bubble around the soldering surface, the nitrogen gas eliminates oxidation of the soldering tip and soldering surface, thus minimizing solder defects and increasing tip life. Preheated before application, and applied directly to the soldering surface via a nozzle built directly into our soldering tips, it also increases wettability and cycle time, all while minimizing N2 gas usage.
We offer 2 styles of generator: the APN series and the larger KSM-M6R.
APN Series:

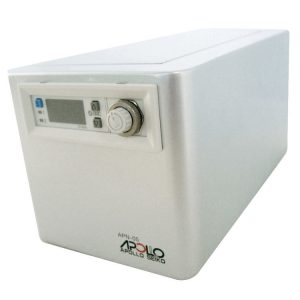

Our APN generators are designed for desktop robots and are available in 2 models: the APN-05, a small, permeable-membrane system generator which can be attached externally or built directly into it a robot; and the APN-12 PSA system generator, a high-performance model which can be used with multiple robots and has a compact design for improved portability.

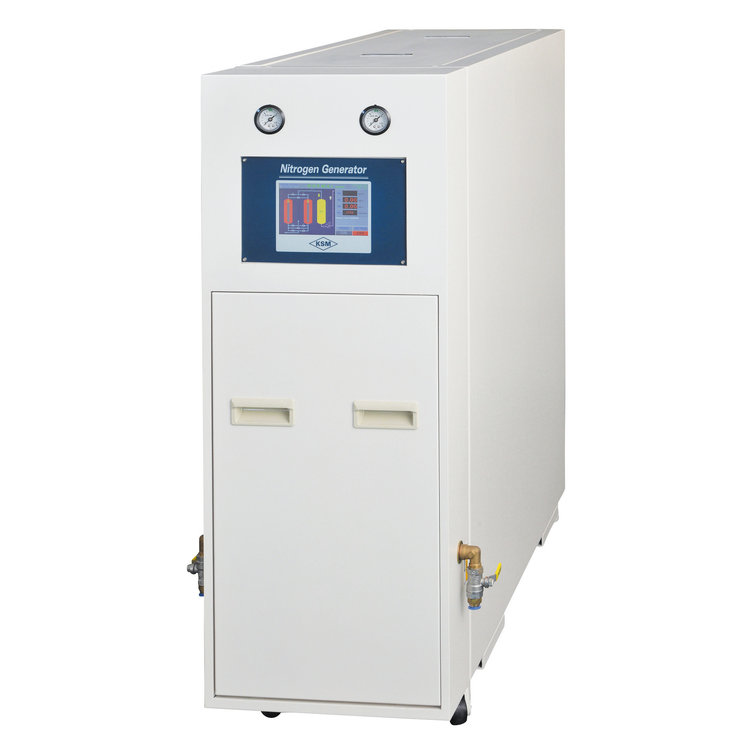

KSM-MR6:
This large, PSA system N2 gas generator has a color touch panel which controls the N2 concentration and displays the amount of fluid flow.
| MODEL | APN-05 | APN-12 |
|---|---|---|
| Air Supply (only dry&clean air) | 0.5~0.6MPa | 0.65~0.7MPa |
| Nitrogen Gas Flow | 0.5 L/min | 1.2 NL/min |
| Nitrogen Gas Con | 99% (when gas flow at 0.5L/min) | 99.99% |
| Power Supply | AC 100~240V, less than 1.4W | AC 100~240V, 50/60Hz |
| Dimension (WxDxH) | Approx 110x200x100 mm | Approx 310x270x310 mm |
| Weight | Approx 1.4kg | Approx 18kg |
| Discharge Pressure | – | 0.5MPa |
| Noise Value | – | 55dB |
| Accessories | Power adapter, I/O connector, air tube (2 types), air cock | – |
| TYPE | KSM-M6R |
|---|---|
| Nitrogen Gas Flow | 100NL/min |
| Nitrogen Gas Con | 99.99% |
| Air Supply | 0.75MPa (only dry, clean air) |
| Discharge Pressure | 0.5MPa |
| Power Supply | 220V 60 Hz |
| Dimensions (WxDxH) | 1260x420x1218 mm |
| Weight | Approx 500kg |
| Noise Value | 65dB |
