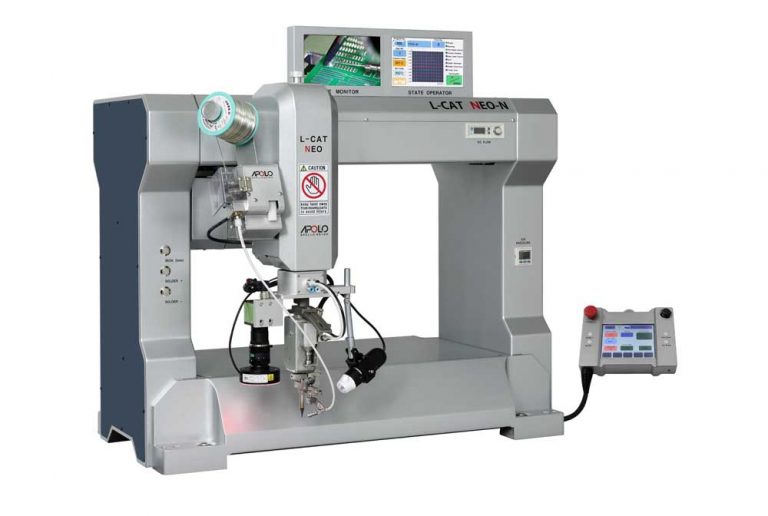

L-CAT NEO-N
3RD GENERATION GANTRY-STYLE SOLDER ROBOT
The L-CAT NEO-N is the culmination of over 45 years of experience in the robotic soldering industry.
With this next-generation robot we’ve directly built in all necessary elements of modern selective soldering. Designed for either an in-line or lean manufacturing process, the L-CAT NEO-N is an exemple of both cutting-edge sophistication and high-speed operation performance.
The built in monitor on the NEO-N allows for viewing the soldering process and aides in programming the application. Robot teaching can be performed by the touch panel Teaching Pendant, a PC or an IPAD. Fiducial recognition and tip position alignment can easily be added to ensure proper tip & PCB alignment. This guarantees an accurate position and ensures the highest quality soldering results.
Easily Adjusted Fiducial Recognition and Tip Position Alignment
Ensure proper tip & PCB alignment with ease. These features guarantee accurate tip positioning and the highest quality soldering results.
Built-in Montior + Variety of Supported Devices
The built-in monitor allows for immediate viewing of the soldering process and aides in programming the application. Software for the primary application is available fo Windows PC (OS: 7, 8.1, 10). Data management and robot teaching can also be managed from iPhone, iPad, Android, and Windows smartphone devices.
Programming Freedom
Normally soldering robots have a fixed sequence to program solder parameters. However, the L-CAT NEO-N has a very flexible solder sequence that can be customized to meet the needs of your specific application. The L-CAT NEO-N offers flexibility of parameter sequencing to provide solutions for high thermal energy, fine pitch devices, large & small lead combinations etc. The soldering parameters (solder feed amount, feeding speed & temperature) can be arranged in a sequence that provides a solution for each particular soldering challenge.
| TYPE | L-CAT NEO-N4330 | L-CAT NEO-N4430 | L-CAT NEO-N4530 | |
|---|---|---|---|---|
| Drive Method | Stepping Motor | |||
| Encoder | 4-axes Applicable | |||
| Resolution | X, Y, Z Axes | 0.01 mm | ||
| R Axis | 0.1° | |||
| Operation Range | X, Y Axes | 300×300 mm | 400×300 mm | 500×300 mm |
| Z Axis | 80 mm | |||
| R Axis | ±180 ° | |||
| Portable Weight | 6 kg | |||
| Axis Speed | X, Y Axes | Max : 1200mm/sec. , Min : 0.1mm/sec. | ||
| Z Axis | Max: 320mm/sec. , Min : 3.2mm/sec. | |||
| R Axis | Max : ±800°/sec. , Min : 8°/sec. | |||
| Repeatability | X, Y, Z Axes | ±0.01mm | ||
| R Axis | ±0.02° | |||
| Teaching Method | Remote Teaching (JOG) | |||
| Manual Data Input (MDI) | ||||
| External Input/Output | Input :39 Output:39 | |||
| Program Capacity | 511 programs | |||
| Memory Capacity | 500,000 point | |||
| Setting Temperature | 0~500℃ | |||
| Solder Feeding Speed | 1.0~50.0 mm/sec | |||
| Solder Feeding Amount Resolution | 0.1 mm | |||
| Solder Diameter | With ZSB Feeder | φ0.4~φ1.0mm(Option: φ0.3,1.2,1.6mm) | ||
| With Normal Feeder | φ0.3~φ1.6mm | |||
| Heater Capacity | 130W (Option: 200W available) | |||
| Nitrogen Generator | Standard equipment to robot included with digital flow meter | |||
| Display Language | English, Chinese, Korean, Japanese | |||
| Power Source | AC94~260V (Single phase) | |||
| Power Consumption | 650W max | |||
| Other | Equipped with monitoring camera | |||
| Dimensions (WxDxH, in mm) | 690x686x800 | 790x686x800 | 890x686x800 | |
| Weight (kg) | 90 | 95 | 100 | |
