LUNA, Omega & TERRA Automated Soldering Units

3RD GENERATION GANTRY-STYLE SOLDER ROBOT

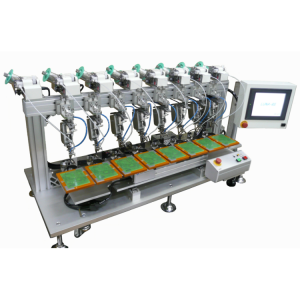

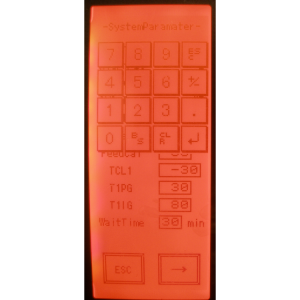

LUNA and TERRA systems have been designed exclusively for automated soldering. These soldering units can be widely adapted for use in semi & fully automated systems, such as dial-table systems, conveyor systems, desk-top robots, linear actuators and your special purpose machines. Equipped with a large, color, touch-panel displays, these units are easily read and interacted with for programming, management, and host connection. And, with multiple-power support, these units can be used in areas without trans AC220V.

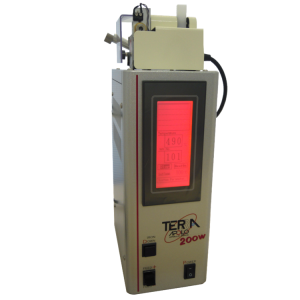

The TERRA
The TERRA offers a whopping 297 soldering profiles, making it a solution for all types of soldering application challenges. Its 200 watt heater also enables it to handle large thermal mass components.
The LUNA
The LUNA is essentially a smaller, more specific version of the TERRA. With 7 soldering profiles to address both point and slide iron-tip soldering, and a 130 watt heater, the LUNA is a flexible and effective unit.
The Omega
The Omega system has been designed exclusively for automated soldering. The soldering unit can be widely adapted for use in semi & fully automated systems, Decks-tops robots, linear actuators and special purposes machines.
TYPETERRALUNA
PowerAC85~264V (single phase)
Power Consumption240W154W
Air Supply0.4~0.5 MPa
Solder Type0.4~2.0mm Select 1 type 0.4~1.6mm for ZSB 0.3mm (Optional)0.4~1.6mm Select 1 type 0.4~1.2mm for ZSB 0.3mm (Optional)
Solder Conditions297 Conditions (99 point, 99 slide, 99 special)7 conditions (4 point, 3 slide)
Setting Temp.0~500°C
Heater Capacity200W (max)130W (max)
Solder Step9 steps
Wait Temperature250°C (Adjustable)
External Start BoxOptional
Controller Weight4.3kg3.5kg
Feeder Unit Weight1.3kg
Iron Unit Weight0.8kg
ComponentsLuna or Terra Controller, RSP/RSL Iron Unit, Solder Wire Feeder, Solder Wire Feeding Tube, Iron Unit/Feeder Signal Cable, Air Tube for Iron Unit, Power Supply Cable
