J-CAT SLV

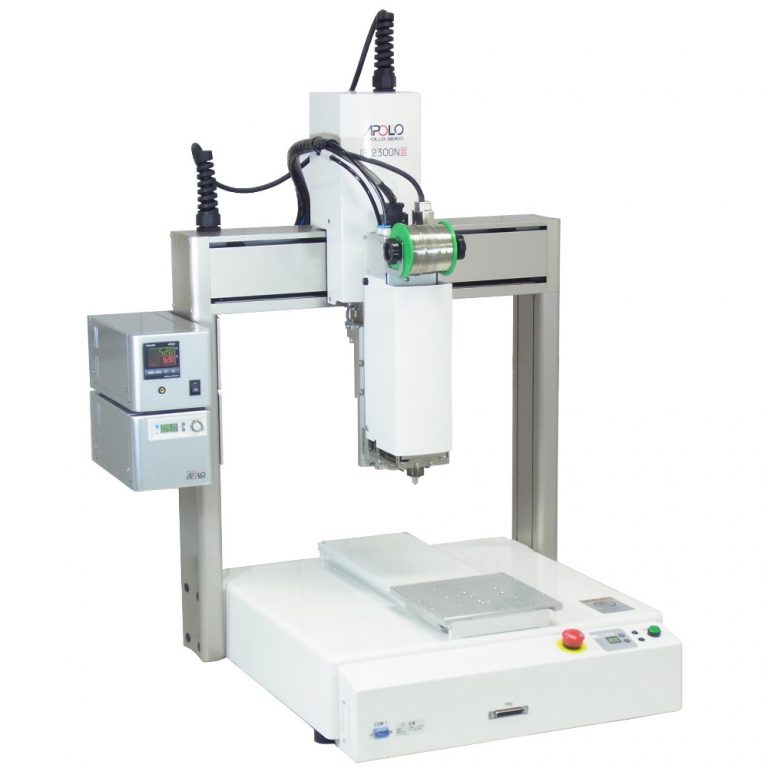

Desktop Sleeve Soldering Robot
This robot installs particularly well into a “lean” cellular production environment. Sporting our SLV sleeve technology, the J-CAT SLV is easy to maintain and eliminates both flux spattering and solder balls. Its ceramic sleeve system prolongs robot life and cuts down on repairs. We also offer custom ceramic sleeve fabrication to better fit your application requirements.
| TYPE | J-CAT330 SLV | J-CAT340 SLV |
|---|---|---|
| Operation Range (X Y Z) | 300x320x100 mm | 400x400x150 mm |
| Portable Weight | 15 kg | |
| Repeatability | X,Y,Z ± 0.007mm | |
| Program Capacity | 999 pograms | |
| Memory Capacity | 32,000 points | |
| Soldering Condition | 500 conditions | |
| Setting Temperature | 0~550°C (1°C increment) | |
| Soldering Feeding Amt Resolution | 0.1 ~99.9mm (0.1mm increments) | |
| Solder Feeding Speed | 1.0~50.0mm/sec. (0.1mm/sec. increments) | |
| Solder Diameter | φ0.8~1.2mm | |
| Power Consumption | 350W (Max) | |
| Heater Power Consumption | 135W | |
| Power Source | AC94~260V(Single phase) | |
| Supply Air | 0.5 MPa (dry & clean air) | |
| Interface | for external operation command D-SUB25 female pin (harness side; male) | |
| Dimensions (WxDxH) | 680x588x1099 mm | 672x643x1149 mm |
| Weight | 40 kg | 47 kg |
