Iron Tip Robotic Soldering

What makes Apollo Seiko iron-tip machines superior?

Advanced Iron Cartridge Technology

Just 8 seconds to exchange iron cartridge without tools.
The iron tip always returns to the exact same position after replacement.
Direct heating system conducts the heat quickly to the iron tip.
Select the most suitable tip profile from a wide variety of iron cartridges, including custom-shaped.
Built-in nitrogen nozzle iron cartridges are available.

Iron Unit Technology

Micro Adjust Unit

This feature allows for fast, easy adjustment of the solder wire supply position up / down & left / right.

Changeable Second Solder Feeding Position

The solder wire is fed under the iron tip to prolong tip plating life and prevent the flux from burning off too rapidly. Upon tip extension, the solder wire contacts the tip thus melting the solder directly onto the solder pad and transferring thermal energy very rapidly. The solder feeding position can be set by programming the Z axis to raise or lower the solder wire location to feed directly into the desired area of the solder joint. This allows the solder to spread evenly around the joint for optimal results.

Low-voltage, Low-power Consumption, and Multi-power

Apollo Seiko’s soldering robots are designed with safe, low-voltage and eco-friendly low-power consumption. The multiple power input has been designed for world-wide factory use and easy transfer to overseas facilities.

Zero-Solder-Ball Roulette Cutting Blade

No.1 Selected Option

The ZSB was designed to prevent solder balls and flux spattering. It reduces product defects, inspection process and reworking time due to the lack of solder ball formation.

Products

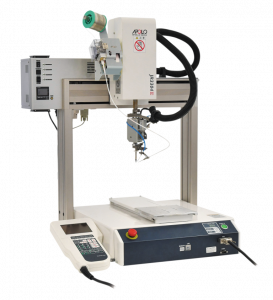

J-CAT LYRA ROBOT

The J-CAT LYRA is a new soldering robot with significantly improved base operational features, increased usability and durability.

JC-3 Cartesian Robot

The multifunctional JC-3 Series Cartesian Robot comes complete with an easy-to-use dedicated controller and robot unit with a rich selection of stroke lengths for each axis.

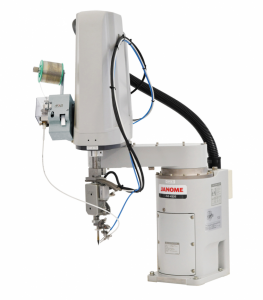

JS-3 Lyra II

This high-speed, axially-moving robot is ideal for use with in-line applications designed for full automation. It is equipped with out latest soldering unit, the LYRA II, to meet all your soldering needs.

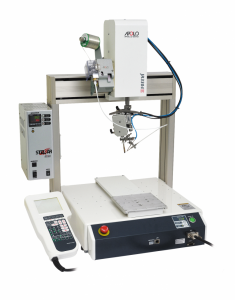

J-CAT STELLAR

This machine is most useful in soldering high sink applications such as multilayer board and shielding case.

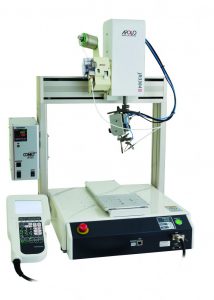

J-CAT COMET

Highly expandable and accompanied by simple, clean, customizable software, the J-CAT COMET is very flexible and easily tailored to meet your needs.

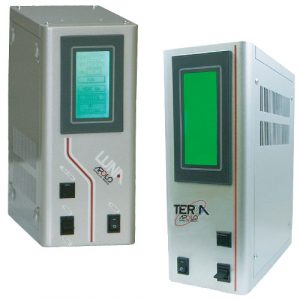

LUNA TERRA Automated Soldering

LUNA and TERRA systems have been designed exclusively for automated soldering.

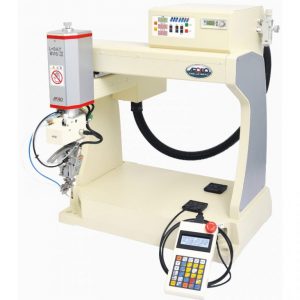

L-CAT EVO II

L-CAT EVO II is an iron-tip robot designed for both desktop and in-line applications, with smoother and more reliable axes, expanded I/O, and Ethernet capability.

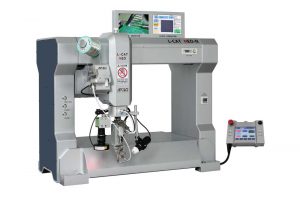

L-CAT NEO-N GANTRY-STYLE ROBOT

Designed for either an in-line or lean manufacturing process, the L-CAT NEO-N is an exemple of both cutting-edge sophistication and high-speed operation performance.

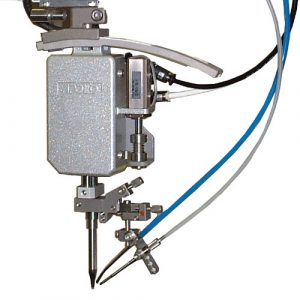

Iron-Tip Soldering Units

We offer 3 units, one for point soldering and 2 for slide. It takes 8 seconds to replace an iron cartridge and does not require position adjustment upon iron cartridge replacement. The solder feeding position can be precisely set by adjusting the set screw.
