SZB-7000

High-Power Manual Soldering Station

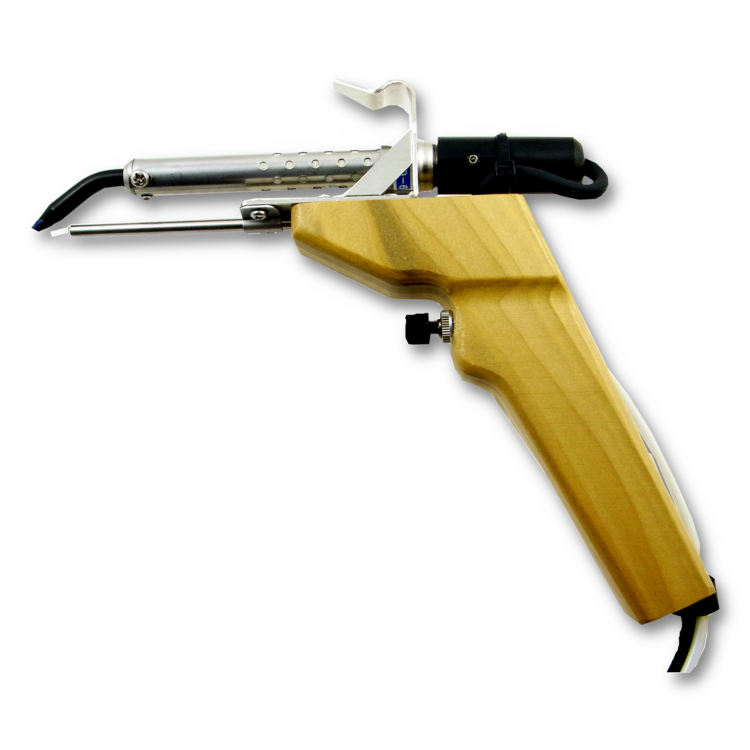

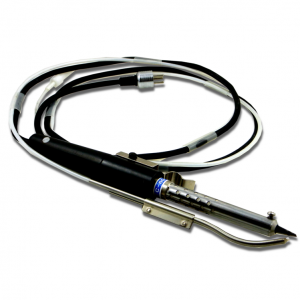

This soldering station consists of a temperature controller and ZSB rollers which help prevent the solder from spattering. This system is very efficient and easy to use. The SZB-7000 has two iron unit options to choose from: Pistol or pencil type iron unit. With the addition of a router life sensor and a USB camera teaching function (option), the J-CAT GRT is much more efficient and allows for a more stable process.
TYPESZB-7000
Solder Diameterφ0.4~1.6mm
Iron Cartridge TypeDS Type (130V Heater)
Power SupplyAC 100~240V (single phase)
Power Consumption195VA
Temp. Range0~500℃
Temp. ControlPID control
Weight4kg (main unit)
Dimensions (WxDxH)110x203x200mm (main unit)
Solder Feed Speed0~40mm/sec.
