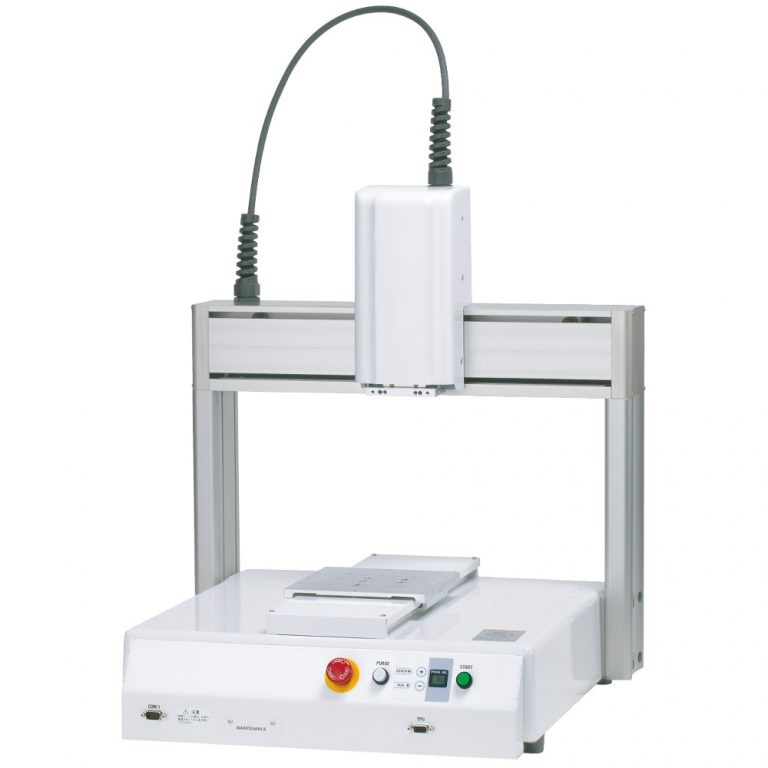

J-CAT DSV
Desktop Dispensing Robot
The J-CAT DSV has a push button to allow the robot to move to an area for dispense material purging. A rotary table can be added so it can be used as a 3-Axes + 1-axis robot (option). This robot can handle most dispensing applications.
| TYPE | J-CAT 200 DSV | J-CAT 300 DSV |
|---|---|---|
| Move Area (mm; X, Y, Z) | 200, 200, 50 | 300, 320, 50 |
| Size (mm, WxDxH) | 320x364x549 | 560x511x609 |
| Weight | 17kg | 30kg |
| Max Speed PTP | 500 mm/sec (1~500 mm/sec) | |
| X, Y, Z Axes | 200 mm/sec (2~200 mm/sec) | |
| Max Speed CP XYZ Axes | 200mm/sec (0.1~200 mm/sec) | |
| Portable Weight | Work 5kg, Tool 2kg | |
| Resolution | +/- 0.01mm (per axis) | |
| Interpolating Function | 3-dimensional linear and arc interpolation | |
| External I/O | I/O-SYS: Input 8/ Output 8 I/O-DSP: Input 1/ Output 2 | |
| Teaching Method | Remote Teaching (JOG) / Manual Data Input (MDI) | |
| Air Pressure | 0.5MPa (dry air) | |
| Power Supply | AC90~250V (single phase) / 150VA | |
| Accessories | Operating Manual (CD-ROM), Power Cable | |
