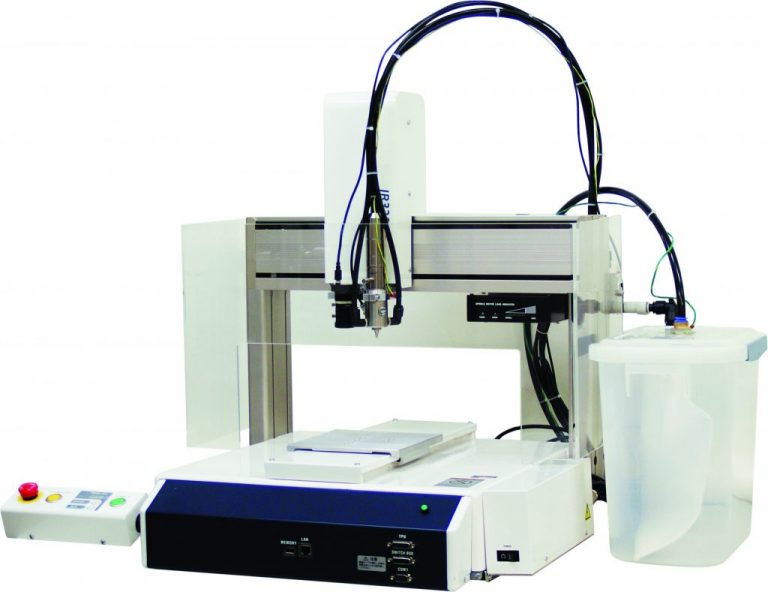

J-CAT GRT
Board Cutting Desktop Robot
With the addition of a router life sensor and a UBS camera teaching function(option), the J-CAT GRT is much more efficient and allows for a more stable process.
| TYPE | J-CAT 320GRT | J-CAT 330GRT | J-CAT 340GRT |
|---|---|---|---|
| Divisible Area (mm, WxDxH) | 195x190x35 | 295x315x90 | 395x395x82 |
| Dimensions (mm, WxDxH) | 350x439x632 | 618x586x657 | 647x640x665 |
| Weight | 26kg | 42kg | 51kg |
| Applicable Board Materials | Glass epoxy/ Paper phenol laminate, etc (max thickness 1.6mm) | ||
| Tool Specification | DC brushless motor – rated speed 40,000 rpm | ||
| Trace Accuracy | 0.2 mm (guide value) – When router 0.8mm, cutting speed 10mm/s, PCB thickness 1.6mm | ||
| Vacuuming Method | Ejector | ||
| Teaching Method | Remote teaching (JOG)/ Manual data input (MDI) | ||
| Power Supply | AC 100~240V (single phase) / 250VA | ||
| Air Supply | 0.5MPa (only dry, clean air) | ||
| Air Consumption | 200Nl/min | ||
| Standard Accessories | Teaching pendant, Manual, Software (factory installed), Dust collecting kit, Router bit(consumable), Spare vacuum nozzle | ||
